Specifications

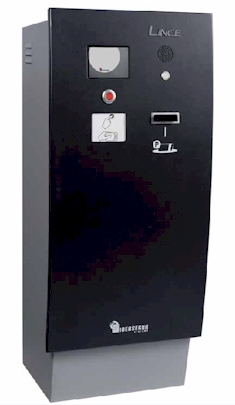

- Ticket dispenser with magnetic recording and printing of
date, time and other data of car entrance to parking. Side and
central strip versions
- Magnetic reader of season cards on the same reader mouth as
ticket issuer device. Smart card reader (option). Credit card
access control system available as an option
- Proximity card (contactless smart-card) reader for season
cards control (optional)
- Automatic/ manual ticket issue activated by car presence
detector
- Checking/ validation of season cards, full/ partial time,
residents, restricted areas cards as well as master cards,
monetary value, time limit and other system cardas. Anti-passback
controls on cards
- Control of vehicle passage sequence, sending ticket code as
“cancelled” to the Central Unit in case of abnormal operation
- Barrier alarm control and management. Controls manual
barrier opening
- Electronic self-adjusting vehicle presence detector.
Prevents ticket extraction by pedestrians
- User-oriented alphanumerical information display in two
languages. TFT monitor in option
- Date and time visualization on display while inactive
- Z-folder ticket loading container with capacity for 5000
tickets. Ticket level control
- Motorized magnetic ISO strip reader/ recorder
- Ethernet communications connection to the central unit.
Optional RS-422 connection
- Pocket terminal connection for maintenance processes
- Autonomous operation
- Electronically controlled internal heating/ ventilation
system
- Polyester powder painted and oven-dried steel housing
- Operating temperature: -20 ºC a +55 ºC
- Protected environment use (roofed)
- Power supply: 220 Vac. ± 10% 50 Hz (110 Vac. ± 10% 60 Hz.
optional)
- Maximum consumption 70 w (270w with heater option)
- Dimensions (in mm.): 1155 x 490 x 439
|
|
|
|
