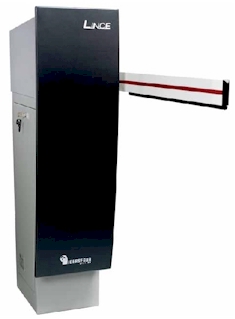

Specifications
- Three phase 0,37 CV motor
- Scaled, self-lubricating motor
- Movement transmission is done by ball-bearing-supported
connecting rods
- Opening/ closing time: from 0,8 secs. to 8 secs. Depending
on the mounted arm (standard: 1,2 secs. For an arm of 3m.)
- Low maintenance rate: soft start and stop movements without
arm oscillations
- Emergency stop feature by a photocell or pressure strip
(optional)
- Optional UPS (Uninterrupted Power Supply) to continue
operating when mains supplys fails (max. 100 up/ down movements)
- Internal memory of 7 pulses. Automatic reset on down signal
loose
- Polyester powder painted and oven-dried steel housing
- Operating temperature: -20 ºC a +55 ºC
- Single phase power supply: 220 Vac. ± 10% 50 Hz (110 Vac. ±
10% 60 Hz. optional)
- Operating consumption: 330 w. maximum
- Dimensions (in mm.): 1155 x 330 x 460
|
|
|
|
